Needle roller bearings are a bearing that is classified as either radial or thrust depending on the direction of the load being supported. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup and solid radial bearings, as well as application-specific cam followers, and roller followers. Thrust bearings include thrust needle bearings.



Cage & Needle Roller Assemblies cage & Needle roller assemblies consist of a complement of needle rollers held in place by a cage. Their unitized design makes for easy handling and installation. With no inner or outer ring, the low cross-section provides maximum load-carrying capability within the smallest envelope.



Properly lubricated, they can operate at high speeds thanks to the unique cage, which guides the rollers precisely. The controlled contour rollers in cage & Needle roller assemblies have an optimum profile which reduces end stresses, allows operation under moderate misalignment and prolongs bearing life.

Drawn Cup Needle Roller Bearings drawn cup needle roller bearings (with a cage and full complement of rollers) have a unique outer ring structure. They have the following features: the thinnest outer ring among rolling bearings, high load capacity, high maximum permissive load owing to the use of carefully selected special alloy steel plates, a surface-hardened cage with high resistance to wear, high limiting speed, and ease of mounting.

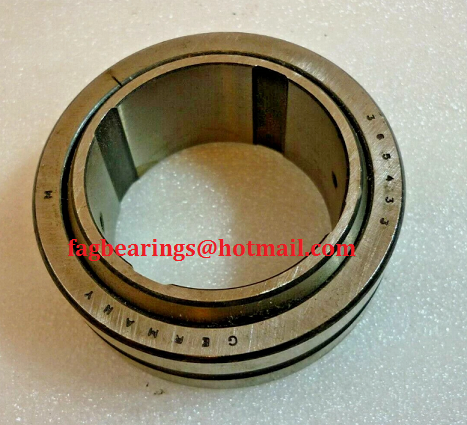

Solid Needle Roller Bearings Solid needle roller bearings are high-accuracy bearings with maximum load capacity within a limited space for various operating conditions. Made of carefully selected vacuum-degassed bearing steel or carburizing steel, the raceway rings are finished with accurate grinding after heat treatment. The outer rings have strong integrated ribs and contain high-accuracy rollers that have the proper crowning finish. Lightweight and extremely strong, the cage guides the rollers accurately and smoothly.

Thrust Needle Roller Bearings Thrust needle bearings type comes in metric and inch designs. The cage & Needle roller assembly for the thrust needle bearing is a cage that has two pieces joined together, to which surface hardening is applied after the precision press processing of a steel plate, and in which high accuracy rollers are incorporated, in order to achieve rigidity and wear resistance. Many rollers are retained securely in the cage, taking large axial load, and yet rotating smoothly. Mounting space is so small that it is easy to replace a conventional sliding thrust washer. Different thicknesses of various types of thrust raceway washers are available in this cage & Needle roller assembly, which allows selection of the appropriate thickness suited for bearing peripheral mounting conditions.

Cam Followers Cam followers, which are equipped with a thick-wall outer ring, crowned rollers, and a stud with a hardened raceway surface, are especially tough and can sustain shock loads.

Roller Followers The roller follower with a thick-wall outer ring and crowned roller has a large load capacity which enables it to carry shock loads. Handling is easy since it it non-separating and applications such as track rollers, cams and rocker arms are wide.

•

  36NQ5238 UNRW11

  Bearings types 36NQ5238 UNRW11 Old types 36NQ5238 UNRW11 Dimensions - FW (inside diameter) Dimensions - D (outside diameter) Dimensions - C(width) 36.00mm 52.00mm 38.00mm Brand OEM Categories Needle Roller Bearings,&

•

  25VI4625

  Bearings types 25VI4625 Old types 25VI4625 Dimensions - FW (inside diameter) Dimensions - D (outside diameter) Dimensions - C(width) 25.00mm 46.00mm 25.00mm Brand OEM Categories Needle Roller Bearings, Single Row

•

  HI-CAP 57355

  Bearings types HI-CAP 57355 Old types HI-CAP 57355 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - T(width) 20.00mm 52.00mm 19.25mm Brand OEM Categories Tapered Roller Bearings, S

•

  57160LFT

  Bearings types 57160LFT Old types 57160LFT Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - T(width) 45.00mm 85.00mm 20.75mm Brand OEM Categories Tapered Roller Bearings, Single Row

•

  TR080702J

  Bearings types TR080702J Old types TR080702J Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - T(width) 38.20mm 68.10mm 18.65mm Brand OEM Categories Tapered Roller Bearings, Single Row

•

  TR0708-1R

  Bearings types TR0708-1R Old types TR0708-1R Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - T(width) 35.00mm 80.00mm 32.75mm Brand OEM Categories Tapered Roller Bearings, Single Row

•

  TR081105-ARW4

  Bearings types TR081105-ARW4 Old types TR081105-ARW4 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - T(width) 40.00mm 105.00mm 45.00mm Brand OEM Categories Tapered Roller Bearings, S

•

  TRA0607RYR

  Bearings types TRA0607RYR Old types TRA0607RYR Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - T(width) 30.00mm 72.00mm 20.75mm Brand OEM Categories Tapered Roller Bearings, Single R

•

  31RUKSS2NR

  Bearings types 31RUKSS2NR Old types 31RUKSS2NR Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 31.10mm 55.00mm 20.00mm Brand OEM Categories Cylindrical Roller Bearings, Single

•

  L630349/L630310

  Bearings types L630349/L630310 Old types L630349/L630310 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  152.40mm 192.088mm 25.00mm 1.60kg Brand OEM Categories Inch Tapere

•

  67983/67920CD

  Bearings types 67983/67920CD Old types 67983/67920CD Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  203.20mm 282.575mm 101.60mm 17.00kg Brand OEM Categories Inch Tapere

•

  LM739749/LM739710CD

  Bearings types LM739749/LM739710CD Old types LM739749/LM739710CD Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight 196.85mm 257.175mm 85.725mm 11.10kg Brand OEM Categories Inch Tapered Roller Bearings, Double row,TDO Place of Origi

•

  99600/99102CD

  Bearings types 99600/99102CD Old types 99600/99102CD Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  152.4mm 254.0mm 149.225mm 27.00kg Brand OEM or OEM Categories Inch T

•

  LM451349/LM451310CD

    Bearings types LM451349/LM451310CD Old types LM451349/LM451310CD Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  266.7mm 355.6mm 127mm 32.00kg Brand OEM Categories Inch

•

  74550/74851CD

    Bearings types 74550/74851CD Old types 74550/74851CD Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  139.70mm 215.90mm 106.362mm 12.90kg Brand OEM Categories Inc

•

  67883/67820CD/X2S-67883

  67883/67820CD/X2S-67883 Bearings types 67883/67820CD/X2S-67883 Old types 67883/67820CD/X2S-67883 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  184.15mm 266.70mm 103.088mm 18.00kg Bra

•

  305801C-2Z

  Bearings types 305801C-2Z Old types 305801C-2Z Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  12mm 35mm 15.90mm 0.08kg Brand OEM Categories Angular Contact Ball&nb

•

  CPM 2567

  Bearings types CPM 2567 Old types CPM 2567 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  40mm ***mm 78mm 1.5kg Brand CPM Categories Cylindrical Roller&nbs

•

  29426 E

  Bearings types 29426 E Old types 29426 E Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  130mm 270mm 85mm 22kg Brand OEM Categories Spherical Roller Th

•

  24044EMD1C3

  Bearings types 24044EMD1C3 Old types 24044EMD1C3 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) Weight  220mm 340mm 118mm 40kg Brand OEM Categories Spherical Roller Bea
