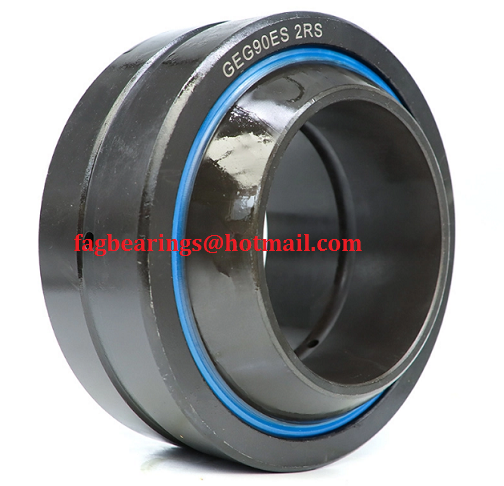

GE90ES-2RS Metric Series Spherical Plain Bearings
The inner and outer rings are coated with molybdenum disulphide for reduced sliding friction.
These spherical plain bearings have a single fractured outer race.
This spherical plain bearing has grooves and thru holes for relubrication.
This spherical plain bearing must be properly lubricated with grease.
This spherical plain bearing has two plastic seals.
Product Details
| Specifications | ||
| Bearing Type | sealed | |
| Bore Dia (d) | 90.000 | mm |
| Outer Dia (D) | 130.000 | mm |
| Dynamic Load Rating (Cr) | 488,000 | N |
| Static Load Rating (Cor) | 2,440,000 | N |
| Outer Width (Bo) | 50.000 | mm |
| Inner Width (Bi) | 60.000 | mm |
| Max. shaft corner radius, or 45 deg. chamfer (ch1) | 1.00 | mm |
| Max. housing corner radius, or 45 deg. chamfer (ch) | 1.00 | mm |
| Spherical Diameter (dk or Dk) | 115.00 | mm |
| Mis-alignment Angle (a deg.) | 5 | |
| Weight (g) | 2,790.00 | grams |
| Material | 52100 Chrome steel, or equivalent | |
All information in this catalog has been thoroughly checked for accuracy. However, the catalog data should not be relied upon entirely for design and development purposes.
SAAB Bearings assumes no liability for possible errors or omissions. All dimensions and specifications are subject to change without notice. Contact SAAB Bearings for the most current catalog data as it applies to you and for your application.
