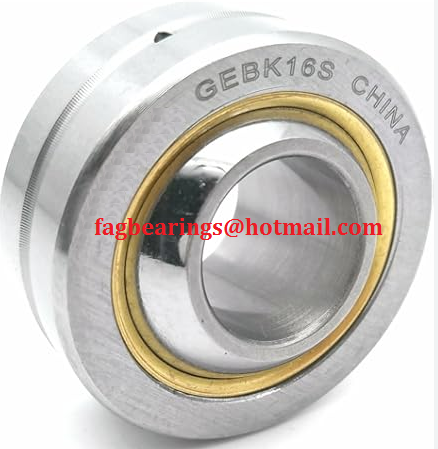

GEBK16S Spherical Plain Bearings
This spherical plain bearing has solid carbon steel outer ring with bronze liner, the inner ring is hard chrome plated.
This spherical plain bearing requires grease lubrication. The outer ring has a groove and holes.
The bearing must be protected from dirt and contamination.
| Specifications | ||
| Bearing Type | bronze-on-steel radial | |
| Bore Dia (d) | 16.000 | mm |
| Outer Dia (D) | 38.000 | mm |
| Dynamic Load Rating (Cr) | 21,000 | N |
| Static Load Rating (Cor) | 50,000 | N |
| Outer Width (Bo) | 15.000 | mm |
| Inner Width (Bi) | 21.000 | mm |
| Max. shaft corner radius, or 45 deg. chamfer (ch1) | 0.30 | mm |
| Max. housing corner radius, or 45 deg. chamfer (ch) | 0.60 | mm |
| Spherical Diameter (dk or Dk) | 28.58 | mm |
| Mis-alignment Angle (a deg.) | 15 | |
| Weight (g) | 118.00 | grams |
| Material | Outer ring - Carbon steel with bronze liner, Inner ring - 52100 chrome steel or equivalent with hard chrome plating | |
