SY3/4FM bearings stock supply, Saab bearing technology co., ltd. has much
stock .we export SY3/4FM to many country and areas. Due to good
price, high quality and short delivery time, we get praise from our purchaser.
If you are interesting in SY3/4FM , please feel free to contact us.
Saab bearing technology co., ltd. specialize in import bearing for many years. Our
business brand is ORIGINAL. All of our storage bearings are origin bearing. SY3/4FM bearings are one of the
stock bearing. more products ,please contact us .

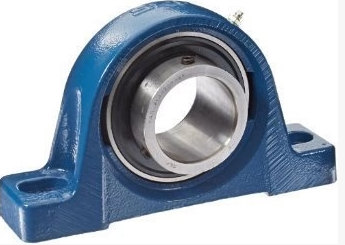

| Y | 3/4 | FM | YET204-012 |
|---|---|---|---|
| Y-Bearings Plummer Block Unit, Cast Housing | 3/4 Inch - Bore Size | Eccentric Locking Collar | Bearing Insert |
| Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| d | A | A1 | B | H | H1 | H2 | J | L |
| 19.05 | 32 | 21 | 31 | 64 | 33.3 | 14 | 97 | 127 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | |||
|---|---|---|---|---|---|---|---|---|
| N | N1 | G | s1 | |||||
| 20.5 | 11.5 | 10 | 24 | 12.7 | 6.55 | 0.28 | 8500 | 0.62 |
