Needle roller bearings are a bearing that is classified as either radial or thrust depending on the direction of the load being supported. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup and solid radial bearings, as well as application-specific cam followers, and roller followers. Thrust bearings include thrust needle bearings.
Cage & Needle Roller Assemblies cage & Needle roller assemblies consist of a complement of needle rollers held in place by a cage. Their unitized design makes for easy handling and installation. With no inner or outer ring, the low cross-section provides maximum load-carrying capability within the smallest envelope.
Properly lubricated, they can operate at high speeds thanks to the unique cage, which guides the rollers precisely. The controlled contour rollers in cage & Needle roller assemblies have an optimum profile which reduces end stresses, allows operation under moderate misalignment and prolongs bearing life.
Drawn Cup Needle Roller Bearings drawn cup needle roller bearings (with a cage and full complement of rollers) have a unique outer ring structure. They have the following features: the thinnest outer ring among rolling bearings, high load capacity, high maximum permissive load owing to the use of carefully selected special alloy steel plates, a surface-hardened cage with high resistance to wear, high limiting speed, and ease of mounting.
Solid Needle Roller Bearings Solid needle roller bearings are high-accuracy bearings with maximum load capacity within a limited space for various operating conditions. Made of carefully selected vacuum-degassed bearing steel or carburizing steel, the raceway rings are finished with accurate grinding after heat treatment. The outer rings have strong integrated ribs and contain high-accuracy rollers that have the proper crowning finish. Lightweight and extremely strong, the cage guides the rollers accurately and smoothly.
Thrust Needle Roller Bearings Thrust needle bearings type comes in metric and inch designs. The cage & Needle roller assembly for the thrust needle bearing is a cage that has two pieces joined together, to which surface hardening is applied after the precision press processing of a steel plate, and in which high accuracy rollers are incorporated, in order to achieve rigidity and wear resistance. Many rollers are retained securely in the cage, taking large axial load, and yet rotating smoothly. Mounting space is so small that it is easy to replace a conventional sliding thrust washer. Different thicknesses of various types of thrust raceway washers are available in this cage & Needle roller assembly, which allows selection of the appropriate thickness suited for bearing peripheral mounting conditions.
Cam Followers Cam followers, which are equipped with a thick-wall outer ring, crowned rollers, and a stud with a hardened raceway surface, are especially tough and can sustain shock loads.
Roller Followers The roller follower with a thick-wall outer ring and crowned roller has a large load capacity which enables it to carry shock loads. Handling is easy since it it non-separating and applications such as track rollers, cams and rocker arms are wide.
-

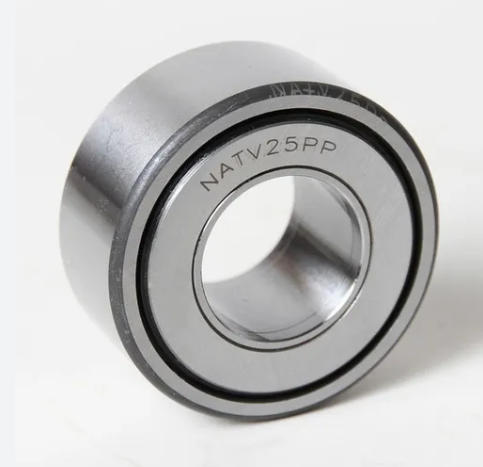

NATV25-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)25mmOutside Dia (D)52mmWidth (B)25mmBrandORIGINALProduct DescriptionNATV25-PP Yoke Type Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as ca
-
NATV30-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)30mmOutside Dia (D)62mmWidth (B)29mmBrandORIGINALProduct DescriptionNATV30-PP Yoke Type Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such
-
NATV12-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)12mmOutside Dia (D)32mmWidth (B)15mmBrandSAABProduct DescriptionNATV12-PP Yoke Type Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as
-
NA2205-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)25mmOutside Dia (D)52mmWidth (B)18mmBrandSAABProduct DescriptionNA2205-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NA2204-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)20mmOutside Dia (D)47mmWidth (B)18mmBrandSAABProduct DescriptionNA2204-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NA2203-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)17mmOutside Dia (D)40mmWidth (B)16mmBrandSAABProduct DescriptionNA2203-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NA2210-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)50mmOutside Dia (D)90mmWidth (B)23mmBrandSAABProduct DescriptionNA2210-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NA2207-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)35mmOutside Dia (D)72mmWidth (B)23mmBrandSAABProduct DescriptionNA2207-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as
-
NA2201-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)12mmOutside Dia (D)32mmWidth (B)14mmBrandSAABProduct DescriptionNA2201-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NA2208-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)40mmOutside Dia (D)80mmWidth (B)23mmBrandSAABProduct DescriptionNA2208-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam ge
-
NA2206-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)30mmOutside Dia (D)62mmWidth (B)20mmBrandSAABProduct DescriptionNA2206-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NA2200-2RSR Yoke Track RollerProduct SpecificationInside Dia (d)10mmOutside Dia (D)30mmWidth (B)14mmBrandSAABProduct DescriptionNA2200-2RSR Yoke Track RollerYoke type track roller bearings can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears,&n
-
NATR10-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)10mmOutside Dia (D)30mmWidth (B)15mmBrandSAABProduct DescriptionNATR10-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gear
-
NATR8-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)8mmOutside Dia (D)24mmWidth (B)15mmBrandSAABProduct DescriptionNATR8-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed wa
-
NATR15-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)15mmOutside Dia (D)35mmWidth (B)19mmBrandSAABProduct DescriptionNATR15-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed
-
NATR50-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)50mmOutside Dia (D)90mmWidth (B)32mmBrandSAABProduct DescriptionNATR50-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed
-
NATR40-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)40mmOutside Dia (D)80mmWidth (B)32mmBrandSAABProduct DescriptionNATR40-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed
-
NATR35-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)35mmOutside Dia (D)72mmWidth (B)29mmBrandSAABProduct DescriptionNATR35-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed
-
NATR30-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)30mmOutside Dia (D)62mmWidth (B)29mmBrandSAABProduct DescriptionNATR30-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed
-

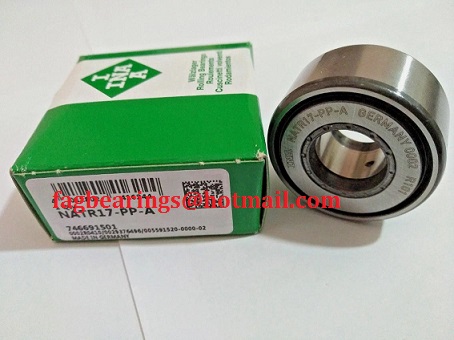

NATR17-PP Yoke Type Track RollerProduct SpecificationInside Dia (d)17mmOutside Dia (D)40mmWidth (B)21mmProduct DescriptionNATR17-PP Yoke Type Track RollerYoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and
