Needle roller bearings are a bearing that is classified as either radial or thrust depending on the direction of the load being supported. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup and solid radial bearings, as well as application-specific cam followers, and roller followers. Thrust bearings include thrust needle bearings.
Cage & Needle Roller Assemblies cage & Needle roller assemblies consist of a complement of needle rollers held in place by a cage. Their unitized design makes for easy handling and installation. With no inner or outer ring, the low cross-section provides maximum load-carrying capability within the smallest envelope.
Properly lubricated, they can operate at high speeds thanks to the unique cage, which guides the rollers precisely. The controlled contour rollers in cage & Needle roller assemblies have an optimum profile which reduces end stresses, allows operation under moderate misalignment and prolongs bearing life.
Drawn Cup Needle Roller Bearings drawn cup needle roller bearings (with a cage and full complement of rollers) have a unique outer ring structure. They have the following features: the thinnest outer ring among rolling bearings, high load capacity, high maximum permissive load owing to the use of carefully selected special alloy steel plates, a surface-hardened cage with high resistance to wear, high limiting speed, and ease of mounting.
Solid Needle Roller Bearings Solid needle roller bearings are high-accuracy bearings with maximum load capacity within a limited space for various operating conditions. Made of carefully selected vacuum-degassed bearing steel or carburizing steel, the raceway rings are finished with accurate grinding after heat treatment. The outer rings have strong integrated ribs and contain high-accuracy rollers that have the proper crowning finish. Lightweight and extremely strong, the cage guides the rollers accurately and smoothly.
Thrust Needle Roller Bearings Thrust needle bearings type comes in metric and inch designs. The cage & Needle roller assembly for the thrust needle bearing is a cage that has two pieces joined together, to which surface hardening is applied after the precision press processing of a steel plate, and in which high accuracy rollers are incorporated, in order to achieve rigidity and wear resistance. Many rollers are retained securely in the cage, taking large axial load, and yet rotating smoothly. Mounting space is so small that it is easy to replace a conventional sliding thrust washer. Different thicknesses of various types of thrust raceway washers are available in this cage & Needle roller assembly, which allows selection of the appropriate thickness suited for bearing peripheral mounting conditions.
Cam Followers Cam followers, which are equipped with a thick-wall outer ring, crowned rollers, and a stud with a hardened raceway surface, are especially tough and can sustain shock loads.
Roller Followers The roller follower with a thick-wall outer ring and crowned roller has a large load capacity which enables it to carry shock loads. Handling is easy since it it non-separating and applications such as track rollers, cams and rocker arms are wide.
-

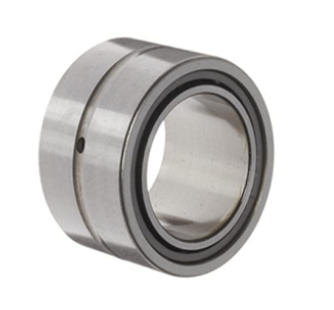

NKI80/35 Needle Roller Bearing with Inner RingProduct SpecificationBrandSAABF90mmInside Dia (d)80mmInterchangeable WithTAFI8011035Outside Dia (D)110mmWidth (B)35mmProduct DescriptionNKI80/35 Needle Roller Bearing with Inner RingThese types of bearings have a low sectional height and large load ratings. It is used when the shaft cannot be heat
-

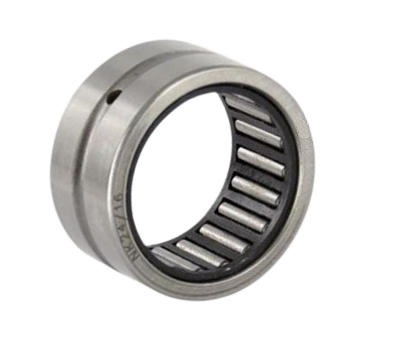

NK100/26 Needle Roller BearingProduct SpecificationBrandSAABInside Dia (Fw)100mmOutside Dia (D)120mmWidth (C)26mm
-
NK47/20 Needle Roller BearingProduct SpecificationBrandSAABInside Dia (Fw)47mmOutside Dia (D)57mmWidth (C)20mm
-
NK40/30 Needle Roller BearingProduct SpecificationBrandSAABInside Dia (Fw)40mmOutside Dia (D)50mmWidth (C)30mm
-

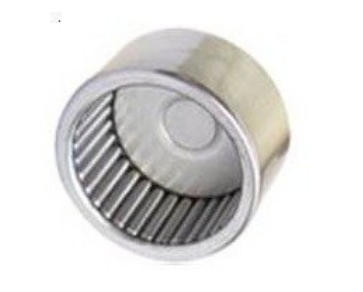

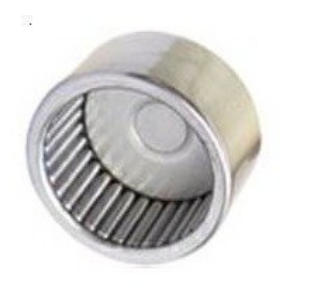

BAM2016 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)1.1/4inchOutside Dia (D)1.1/2inchWidth (C)1inchProduct DescriptionBAM2016 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and
-
BCE812 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)1/2inchOutside Dia (D)11/16inchWidth (C)3/4inchProduct DescriptionBCE812 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and th
-
BAM2220 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)1.3/8inchOutside Dia (D)1.5/8inchWidth (C)1.1/4inchProduct DescriptionBAM2220 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks
-
BAM3216 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)2inchOutside Dia (D)2.3/8inchWidth (C)1inchProduct DescriptionBAM3216 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and the
-
BCE1612 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)1inchOutside Dia (D)1.1/4inchWidth (C)3/4inchProduct DescriptionThis style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and the entry of foreign particles such as dirt and dust.Th
-
BAM2020 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)1.1/4inchOutside Dia (D)1.1/2inchWidth (C)1.1/4inchProduct DescriptionBAM2020 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks
-
BAM1212 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)3/4inchOutside Dia (D)1inchWidth (C)3/4inchProduct DescriptionBAM1212 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and the
-
BCE810 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)1/2inchOutside Dia (D)11/16inchWidth (C)5/8inchProduct DescriptionThis style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and the entry of foreign particles such as dirt and dust.T
-
BAM128 Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandSAABInside Dia (Fw)3/4inchOutside Dia (D)1inchWidth (C)1/2inchProduct DescriptionBAM128 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and the en
-
BAM1316 Drawn Cup Bearing with One Closed End (Caged)roduct SpecificationBrandSAABInside Dia (Fw)13/16inchOutside Dia (D)1.1/16inchWidth (C)1inchProduct DescriptionBAM1316 Drawn Cup Bearing with One Closed End (Caged)This style of drawn needle cup bearing is completely closed on one side of the outer ring. It also prevents against grease leaks and
-

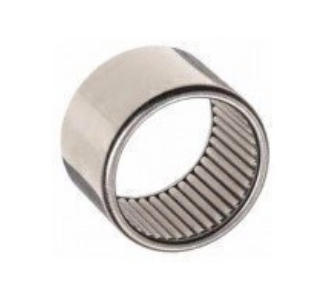

HN4520 Drawn Cup Needle Roller Bearing DL4520Product SpecificationBrandSAABInside Dia45mmOutside Dia52mmWidth/Length20mm
-
HN1412 Drawn Cup Needle BearingProduct SpecificationBrandINAInside Dia14mmOutside Dia20mmWidth/Length12mmProduct DescriptionHN1412 Drawn Cup Needle BearingThis is a full complement needle roller bearing with open ends.
-
HN1412 Drawn Cup Needle BearingProduct SpecificationBrandSAABInside Dia14mmOutside Dia20mmWidth/Length12mmProduct DescriptionHN1412 Drawn Cup Needle BearingThis is a full complement needle roller bearing with open ends.
-
HN2020 Drawn Cup Needle BearingProduct SpecificationBrandINAInside Dia20mmOutside Dia26mmWidth/Length20mmReferenceHN2020Product DescriptionHN2020 Drawn Cup Needle BearingThis is a full complement needle roller bearing with open ends.
-
BK2538 Budget Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandBudgetInside Dia (Fw)25mmInterchangeable With:TLAM2538Outside Dia (D)32mmWidth (C)38mmReferenceBK2538
-
BK5020 Budget Drawn Cup Bearing with One Closed End (Caged)Product SpecificationBrandBudgetInside Dia (Fw)50mmInterchangeable With:TLAM5020Outside Dia (D)58mmWidth (C)20mmReferenceBK5020
